Composite Drainage Board for Foundation, Basement, and Retaining Wall Drainage
A high-performance composite drainage board designed to provide continuous water flow, protect waterproofing membranes, and reduce hydrostatic pressure in below-grade and vertical drainage applications.
Key Selling Points:
- Efficient drainage and water channeling
- Protects waterproofing membranes during backfilling
- Lightweight and easy to install
- Available in multiple thicknesses and compressive strengths
CTA Buttons:
- Get a Quote
- Download Datasheet
What Is Composite Drainage Board?
Composite drainage board is a prefabricated drainage material typically made of a molded drainage core bonded with a nonwoven geotextile filter fabric. It is used to collect and redirect water away from foundation walls, retaining walls, basement waterproofing systems, podium decks, and other buried or protected structures. Compared with traditional gravel drainage systems, composite drainage board offers a cleaner, lighter, and more space-efficient solution.
Key Benefits of Composite Drainage Board
Fast and Continuous Drainage
Engineered drainage channels help move water efficiently and reduce pressure buildup behind walls and underground structures.
Protects Waterproofing Systems
The board acts as a protective layer that helps prevent damage to waterproofing membranes during backfilling and construction.
Space-Saving Alternative to Gravel
Compared with traditional gravel drainage, composite drainage board reduces material volume and simplifies installation.
Lightweight and Easy to Handle
Rolled or panel-based formats make transportation, cutting, and installation easier on site.
Suitable for Multiple Applications
It can be used in foundation drainage, retaining walls, roof gardens, tunnels, podium decks, and basement waterproofing systems.
Available in Different Strengths
Different thicknesses and compressive strengths can be selected based on project load and drainage requirements.
Product Structure and How It Works

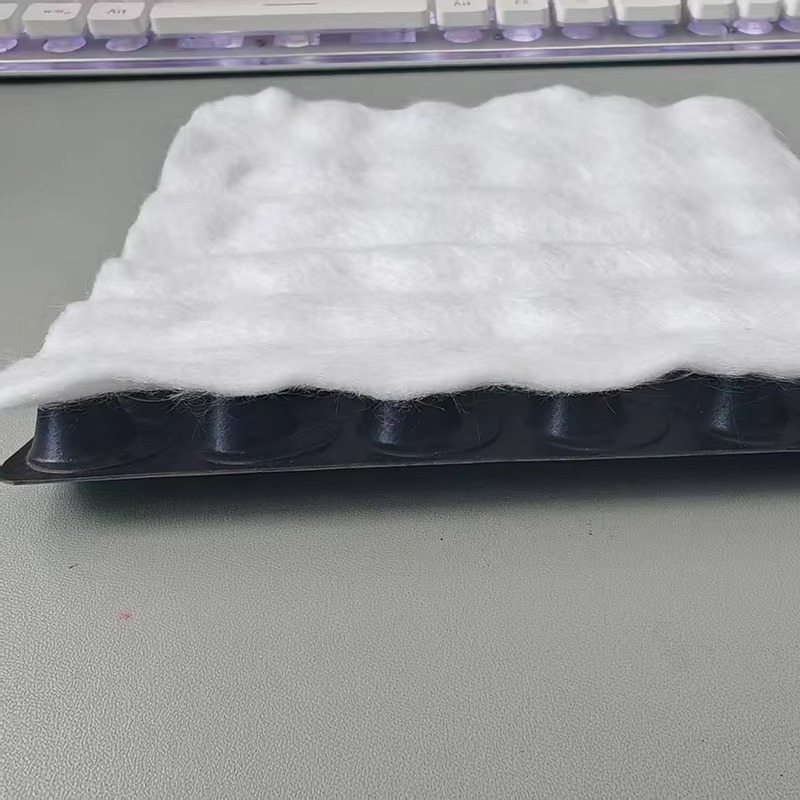

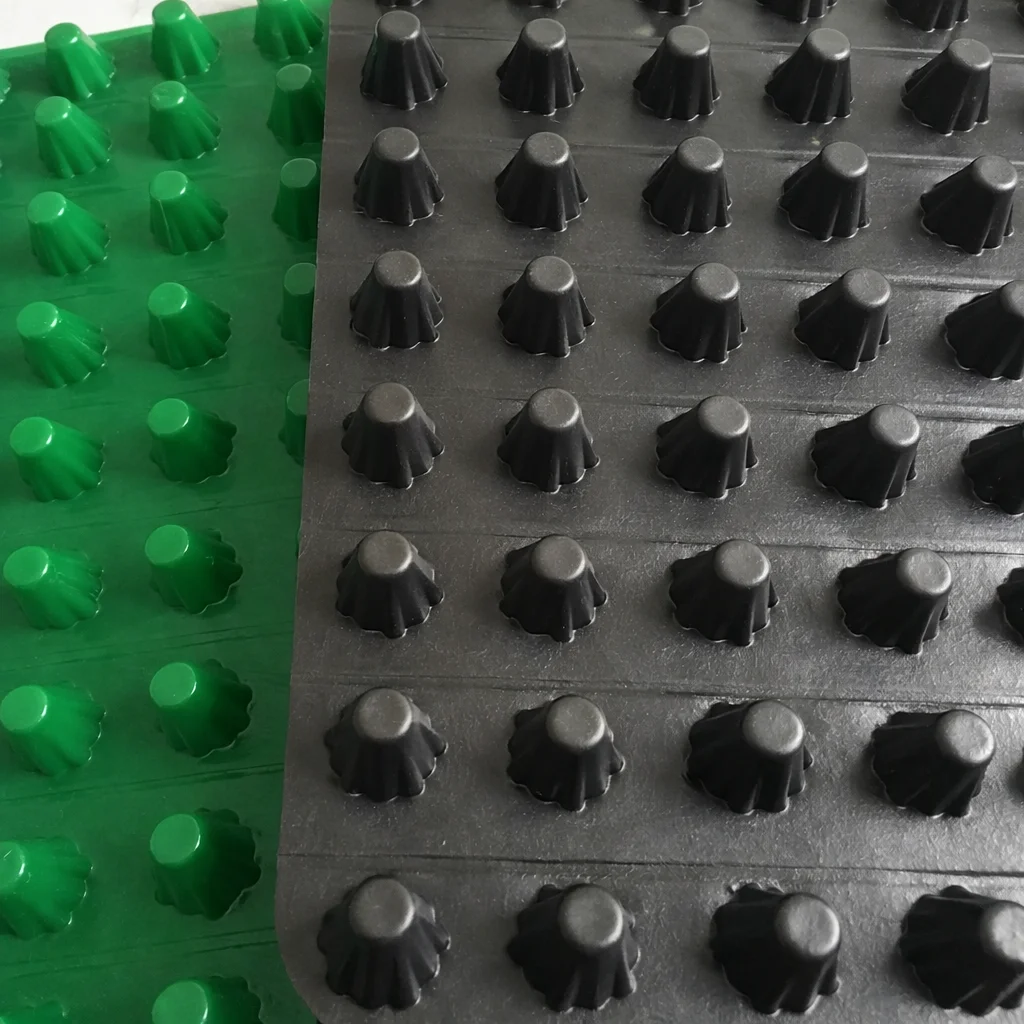

Our composite drainage board combines a high-flow drainage core with a geotextile filter layer. The geotextile allows water to enter while helping prevent soil particles from clogging the drainage path. The core creates an air gap or drainage channel that directs water downward to the collection system. At the same time, the board helps protect the waterproofing membrane from mechanical damage.

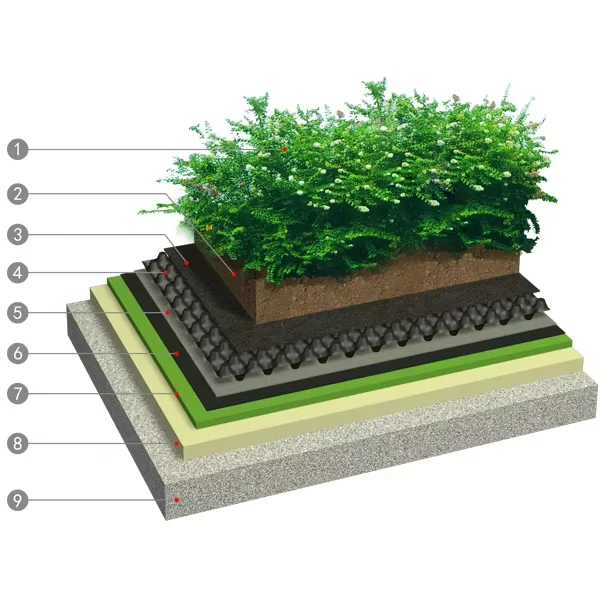

Suggested Visual Labels:
- Geotextile filter fabric
- Drainage core
- Water flow path
- Waterproofing membrane protection layer
Typical Applications
- Foundation wall drainage
- Basement waterproofing systems
- Retaining wall drainage
- Plaza deck drainage
- Roof garden drainage
- Podium deck drainage
- Tunnel drainage
- Underground concrete structures
- Planters and landscape drainage
Composite drainage board is widely used behind retaining walls to reduce hydrostatic pressure and improve long-term wall drainage performance. See our retaining wall drainage guide for thickness selection and installation details.
Technical Specifications
Our composite drainage board is available in multiple configurations to meet the drainage, protection, and load-bearing requirements of different construction applications. The table below outlines the standard product options, including thickness, core structure, filter fabric, drainage performance, load resistance, and typical use scenarios.
Note: The specifications above are standard options for reference. Product selection should be based on project conditions such as drainage demand, wall height, soil pressure, waterproofing design, and load requirements. Custom sizes and project-specific configurations are available upon request.
To view standard product options and catalog-style product details, please see our composite drainage board product page.
| Model | Thickness | Core Structure | Filter Fabric | Drainage Capacity | Load Resistance | Standard Roll Size | Typical Application |
|---|---|---|---|---|---|---|---|
| CDB-08 | 8 mm | Molded HDPE core | Nonwoven geotextile | Standard drainage performance | Medium-duty | 1.0 m × 20 m | Foundation wall drainage and membrane protection |
| CDB-10 | 10 mm | Molded HDPE core | Nonwoven geotextile | Improved vertical flow | Medium to high-duty | 1.0 m × 20 m | Retaining walls and basement waterproofing systems |
| CDB-12 | 12 mm | Molded HDPE core | Nonwoven geotextile | Enhanced drainage capacity | High-duty | 1.0 m × 20 m | Underground structures and demanding below-grade applications |
| CDB-20 | 20 mm | High-void HDPE core | Nonwoven geotextile | High-flow drainage | High-duty | 1.0 m × 15 m | Plaza decks, podium decks, and heavy-load retaining walls |
| CDB-30 | 30 mm | High-void HDPE core | Nonwoven geotextile | High-flow drainage with larger void space | Very high-duty | 1.0 m × 15 m | Roof gardens, landscaped decks, and heavy-duty drainage assemblies |
Composite Drainage Board vs Traditional Drainage Materials
Composite Drainage Board vs Gravel Drainage
- Faster installation
- Lower transportation and labor cost
- More consistent drainage path
- Better membrane protection
- Less space required behind the wall
Composite Drainage Board vs Dimple Drainage Sheet
- Composite drainage board includes a filter layer
- Better resistance to soil intrusion in many applications
- More suitable where filtration and drainage are both required

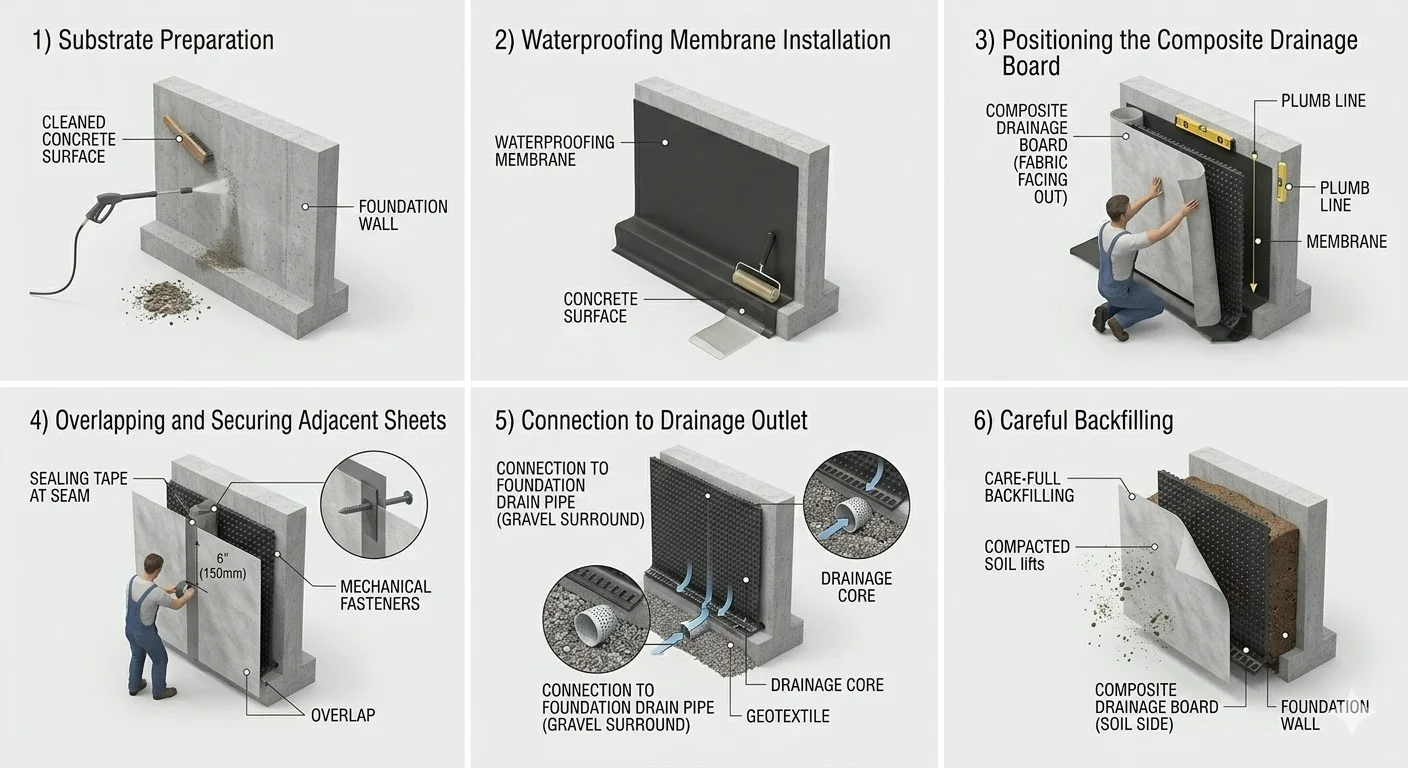

Installation Guide
Step 1: Prepare the Substrate
Ensure the wall or protected surface is clean, dry, and ready for waterproofing installation.
Step 2: Install Waterproofing Membrane
Apply the waterproofing membrane according to project specifications before placing the drainage board.
Step 3: Position the Drainage Board
Install the composite drainage board with the correct orientation so the drainage core and fabric function properly.
Step 4: Overlap and Secure
Overlap adjacent sheets as required and secure them according to the installation method used on site.
Step 5: Connect to Drainage Outlet
Make sure the drainage path leads to the footing drain or designated water collection system.
Step 6: Backfill Carefully
Avoid damaging the board during backfilling and follow load and compaction recommendations.
Quality Assurance and Custom Support
We provide composite drainage board solutions with consistent material control, reliable drainage performance, and support for custom project requirements. Technical data sheets, specification support, and OEM options are available upon request.
Optional Bullets:
- Strict raw material inspection
- Consistent production quality control
- Datasheet and specification support
- OEM and custom size options
- Sample support for project evaluation
Project Applications and Use Cases
Our composite drainage board has been selected for projects requiring reliable vertical and below-grade drainage performance. It is suitable for foundation protection, retaining wall drainage, basement waterproofing systems, and other structures where long-term water management and membrane protection are critical.
FAQ
What is composite drainage board used for?
Composite drainage board is used to collect and redirect water away from walls, foundations, and waterproofed structures while protecting the membrane from damage.
Is composite drainage board better than gravel drainage?
In many projects, it offers easier installation, less weight, reduced space requirements, and more consistent drainage performance than traditional gravel systems.
Can composite drainage board be used on retaining walls?
Yes. It is widely used behind retaining walls to help relieve hydrostatic pressure and improve water management.
Does it protect waterproofing membranes?
Yes. In addition to drainage, it also acts as a protection layer during backfilling and construction.
What thickness should I choose?
The correct thickness depends on load conditions, drainage demand, and application type. Contact us for project-specific recommendations.
Can you provide custom sizes or OEM service?
Yes. Custom specifications and OEM support are available based on project requirements.
Can I request a datasheet or sample?
Yes. We can provide technical data and sample support for evaluation.
Final CTA Section
Need the Right Composite Drainage Board for Your Project?
Contact us for technical support, specifications, pricing, and sample requests. Our team can help you choose the right composite drainage board for foundation drainage, retaining walls, basement waterproofing, and other project applications.
