Retaining wall failures are often caused not by insufficient wall strength, but by poor drainage behind the wall.
When water accumulates in the backfill zone, hydrostatic pressure increases rapidly, leading to:
- wall bulging
- cracking
- outward movement
- long-term structural instability
A composite drainage board is one of the most effective geosynthetic solutions for relieving water pressure behind retaining walls.
Unlike traditional gravel drainage systems, it combines drainage, filtration, and wall protection into a single engineered layer.
For a complete product overview, including structure, technical specifications, and general applications, visit our main composite drainage board page.
For material specifications and supplier information, you can look this product page: composite drainage board product specifications.
Why Retaining Walls Need Composite Drainage Boards
The main engineering problem behind retaining walls is hydrostatic pressure.
After rainfall or groundwater seepage, water becomes trapped within the backfill soil.
Without an efficient drainage path, pressure acts laterally on the wall face.
This pressure can exceed the design earth pressure.
Common failure signs include:
- horizontal cracking
- wall tilting
- base displacement
- soil erosion at the toe

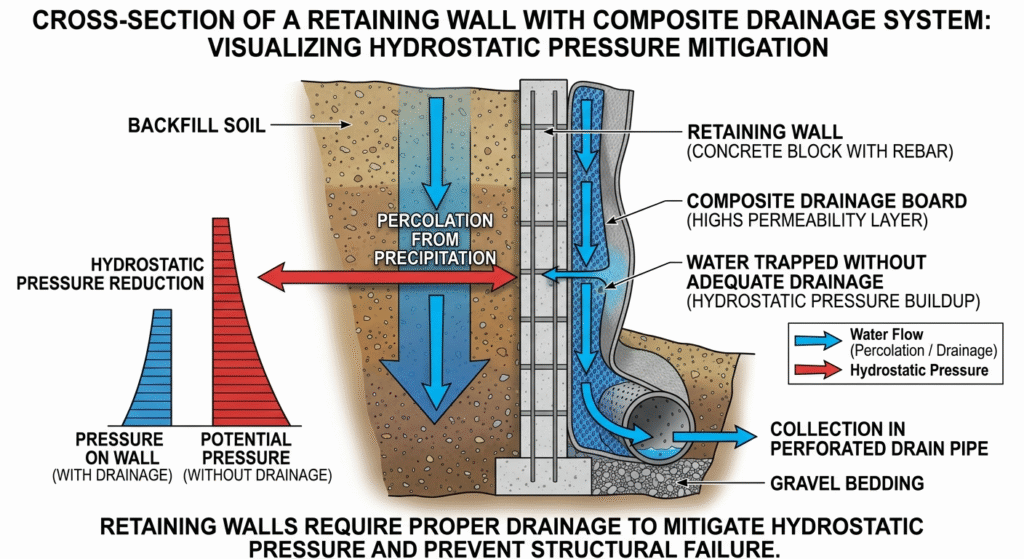

A composite drainage board creates a continuous drainage channel that rapidly conveys water downward to the outlet pipe.
This significantly reduces lateral water pressure.

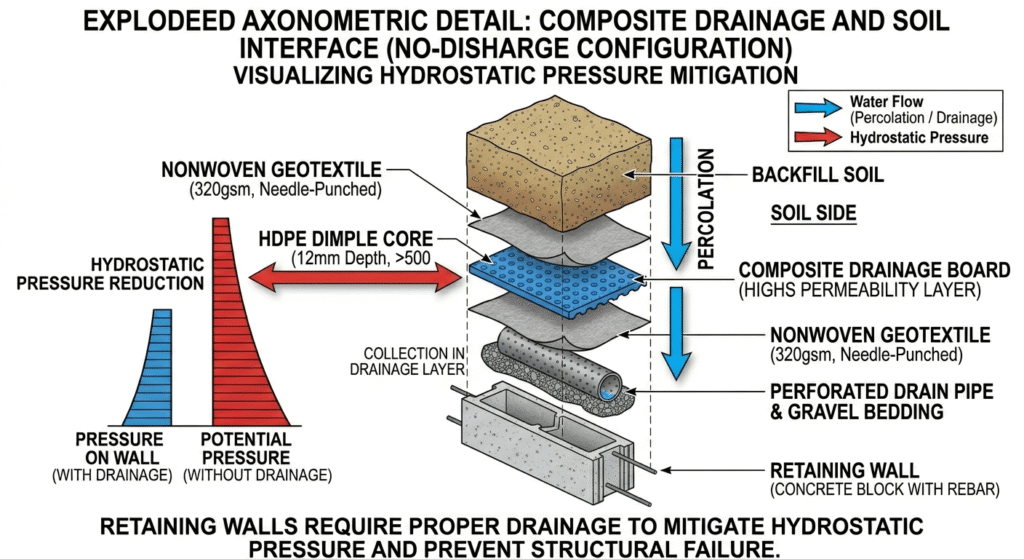

How Composite Drainage Board Works Behind a Retaining Wall
The drainage system works through three coordinated layers.
1. HDPE Drainage Core
The dimpled or cuspated core creates vertical void channels.
These channels allow water to flow downward.
2. Geotextile Filter Layer
The nonwoven geotextile faces the soil side.
Its function is to:
- allow water passage
- prevent fine soil migration
- reduce clogging risk
3. Bottom Outlet System
Water collected by the board must discharge into:
- perforated drain pipe
- gravel collector trench
- stormwater outlet
Without an outlet, even the best drainage board will fail.

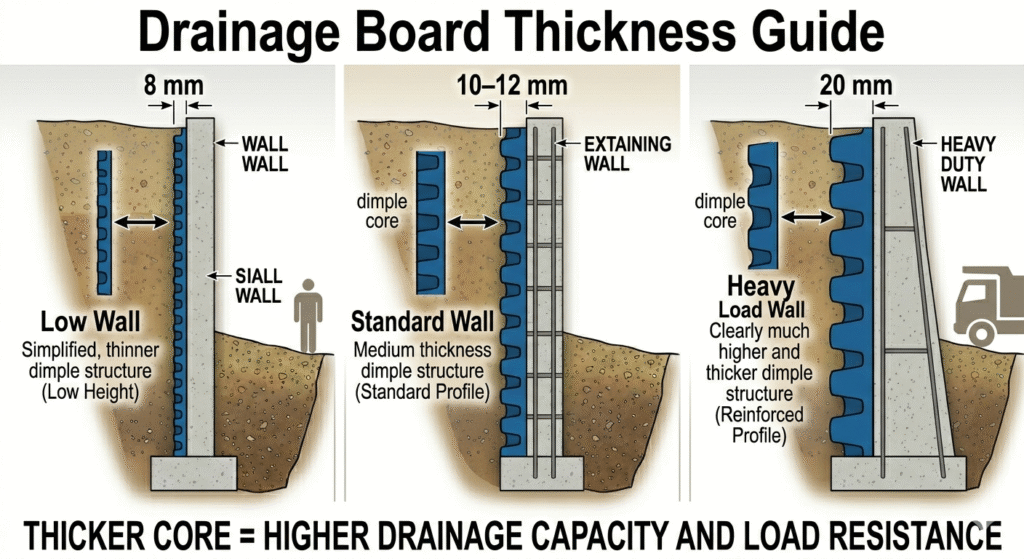

Recommended Thickness Guide
Thickness selection should be based on wall height, surcharge load, and groundwater conditions.
| Wall Height | Recommended Thickness |
|---|---|
| < 2 m | 8 mm |
| 2–4 m | 10 mm |
| 4–6 m | 12 mm |
| > 6 m / heavy surcharge | 20 mm |
For heavy traffic retaining walls or industrial yards, higher compressive strength boards are recommended.
Typical engineering ranges:
- 8–10 mm → residential / garden walls
- 10–12 mm → standard commercial walls
- 20 mm → heavy load applications

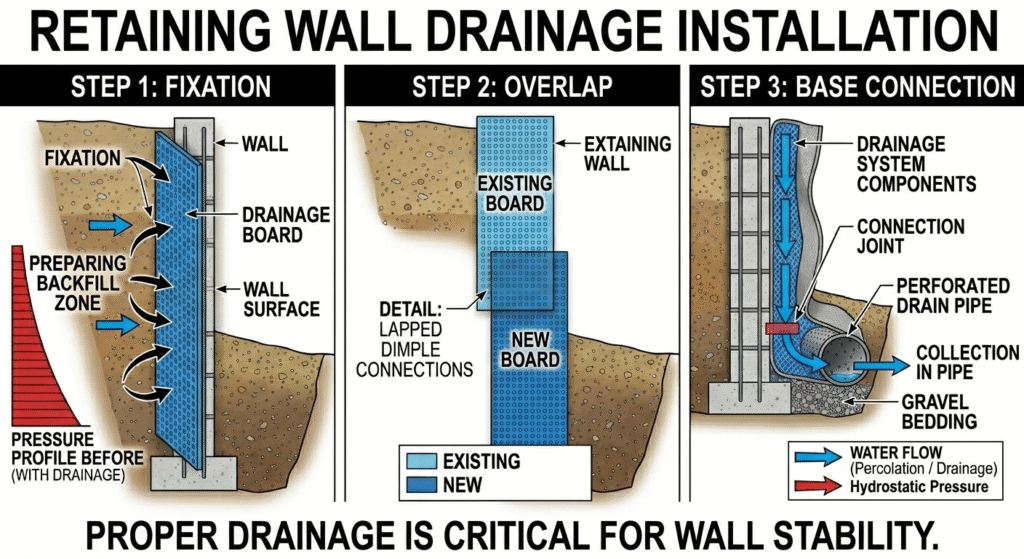

Step-by-Step Installation Guide
Proper installation is critical.
Step 1: Prepare Wall Surface
The retaining wall surface should be:
- clean
- dry
- free of protrusions
Step 2: Position the Drainage Board
Install vertically with:
- geotextile side facing soil
- HDPE core facing wall
This orientation is extremely important.
Incorrect orientation is one of the most common mistakes.
Step 3: Overlap Adjacent Panels
Recommended overlap:
- 100–150 mm
Use sealing tape or mechanical fixing if necessary.
Step 4: Connect to Drain Pipe
The bottom edge must connect directly to the perforated drainage pipe.
This ensures collected water exits the system.
Composite Drainage Board vs Traditional Gravel Drainage
| Factor | Composite Drainage Board | Gravel Drainage |
|---|---|---|
| Thickness | Thin | Thick |
| Labor cost | Lower | Higher |
| Drainage consistency | High | Medium |
| Clogging resistance | High | Medium |
| Installation speed | Fast | Slow |
For modern retaining wall systems, composite drainage boards are often preferred due to easier installation and lower backfill thickness requirements.
Common Engineering Mistakes
The most common mistakes include:
- wrong board orientation
- no bottom drain pipe
- insufficient overlap
- using thin boards for high walls
- backfill compaction damage
These errors are more likely to cause failure than material defects.
Final Engineering Recommendation
For retaining wall drainage design, a composite drainage board provides a reliable and space-efficient solution.
Recommended engineering logic:
- low walls → 8–10 mm
- medium walls → 10–12 mm
- heavy load / high walls → 20 mm
Always combine with:
- perforated drain pipe
- filter geotextile
- proper outlet slope
