PP Woven Dewatering Tube
Geotube is a high-strength geosynthetic dewatering structure made from woven polypropylene fabric.
It is designed to separate, filter, and dewater sludge, dredged sediment, or contaminated soil efficiently.
By filtering water and retaining solids, Geotubes provide a cost-effective and environmentally friendly solution for sludge management, shoreline protection, and erosion control.
Visit our Geotube Manufacturer Page for detailed technical guidance.
Our Geotube Dewatering Container is a high-strength geotextile tube used for dewatering slurry, sludge, and dredged sediments in both industrial and environmental applications.
Constructed from UV-stabilized woven geotextile fabric, this engineered container allows water to drain through the fabric while retaining solids inside — delivering controlled filtration without costly mechanical systems.
Unlike traditional dewatering equipment such as centrifuges, presses, or clarifiers, geotube solutions offer:
Low Operating Cost
Minimal energy and maintenance compared with mechanical dewatering.
High Volume Reduction
Significantly reduces the volume of material to be handled or disposed.
Passive Filtration Mechanism
Uses fabric permeability and gravity, reducing equipment complexity.
Scalable & Flexible Deployment
Suitable for both small sites and large-scale industrial dewatering.
Environmentally Responsible
Clarified water can be collected and reused or discharged responsibly.

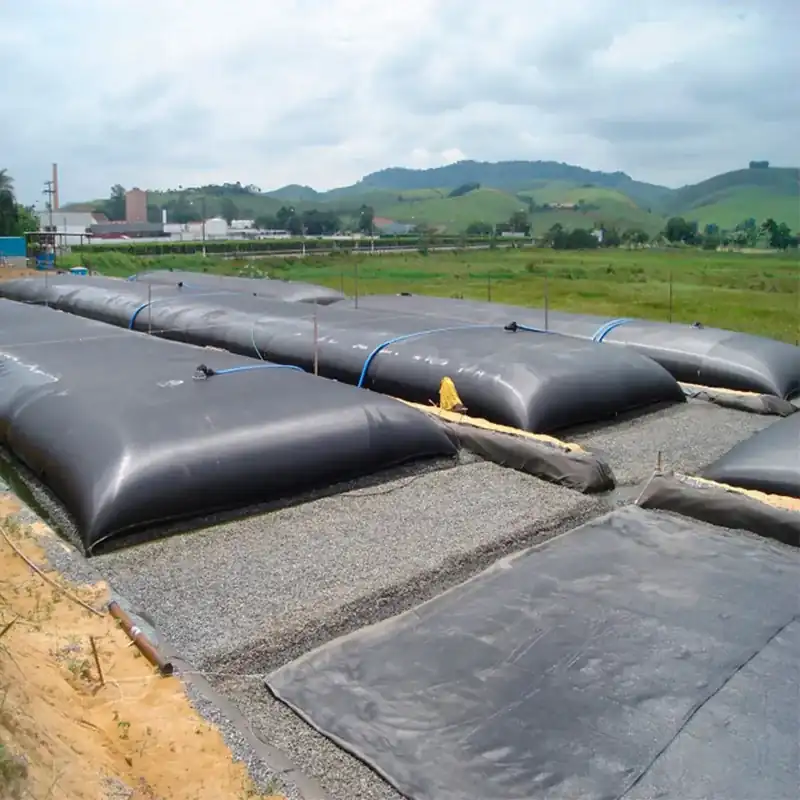

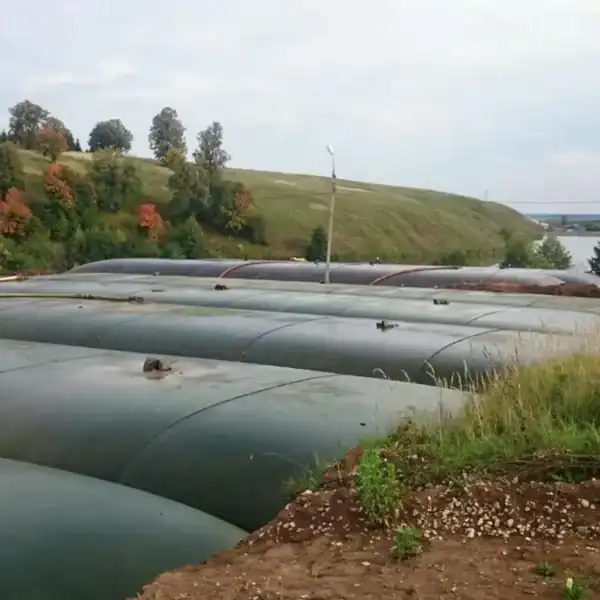

Geotube Dewatering Containers are widely used for:
Ideal for harbor, river, and channel dredging where slurry needs solid-liquid separation.
Dewater sludge from wastewater treatment plants and industrial waste streams.
Efficiently handle tailings and process water in mining and mineral processing.
Control groundwater or stormwater with suspended solids at construction sites.

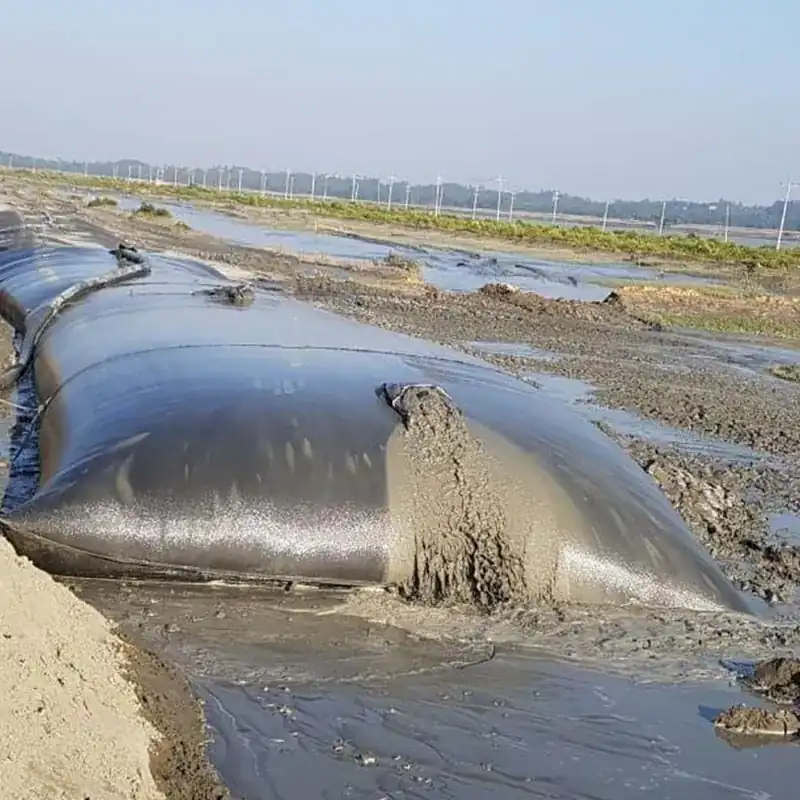

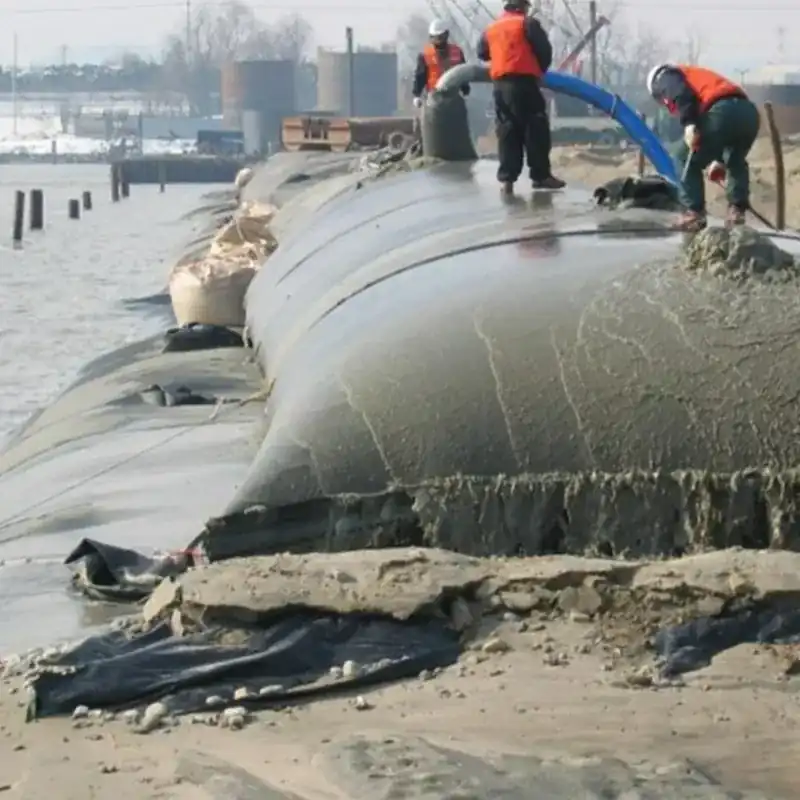

Slurry Filling — Slurry, sludge, or dredged material is pumped into the geotube through inlet fittings.
Water Permeation — Water permeates through the woven geotextile fabric.
Solids Retention — Solids accumulate inside the tube while water drains away.
Consolidation & Volume Reduction — Solid content compacts over time, reducing final disposal volume.
This passive dewatering process minimizes energy input and simplifies on-site execution.
| Feature | Specification |
|---|---|
| Material | UV-stabilized woven geotextile |
| Fabric Strength | Project-specific design |
| Permeability | Engineered for slurry type |
| Typical Diameter | Custom (0.5–3 m+) |
| Typical Length | Custom based on application |
| Fill Method | Pump-fed slurry / dredged material |
| UV Resistance | High for outdoor exposure |
Note: Final specifications are selected based on the slurry load, solids content, and project requirements.
For engineering applications and project solutions, see our main Geotube Solutions page.
Standard Dewatering Tubes — For slurry & sediment dewatering
High-Strength Dewatering Tubes — For heavy solids load
Containerized Geotube Systems — For integrated site deployment
Custom Engineered Kits — Tailored to site conditions and volume
Our geotubes are manufactured with strict quality control including:
Raw material inspection
Fabric strength & seam testing
Dimensional consistency checks
Pre-shipment documentation
This ensures durable performance in demanding environments.
