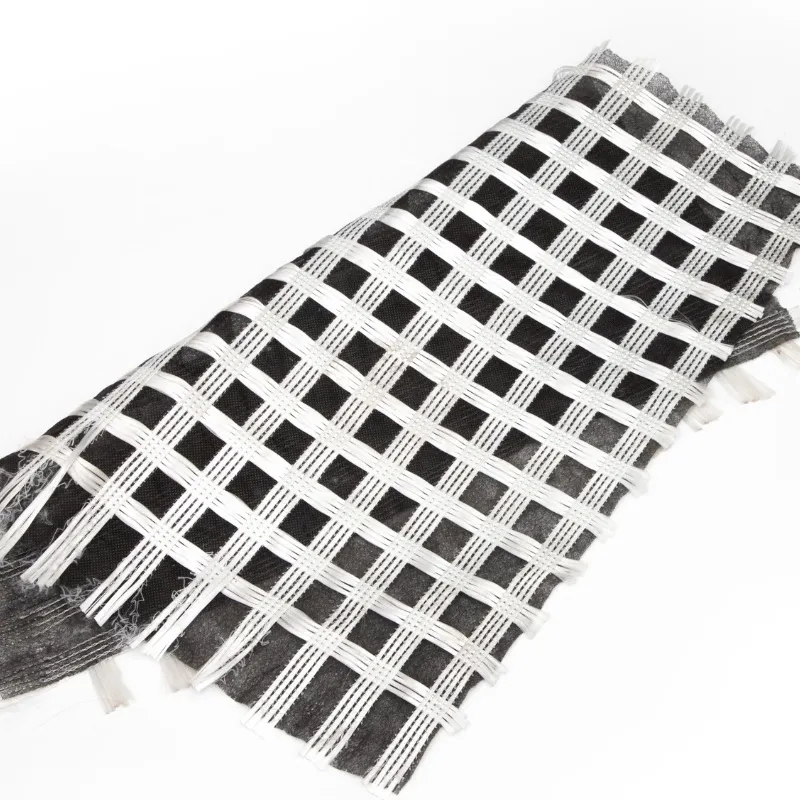

Glass Fiber Geogrid Composite Geotextile

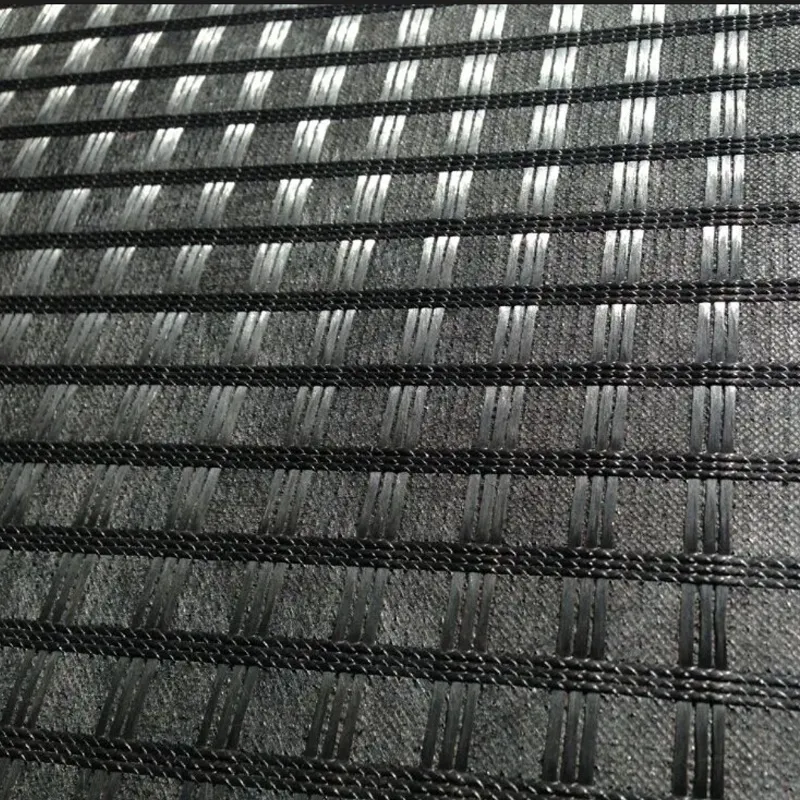

Glass Fiber Geogrid Composite Geotextile - 图片 2

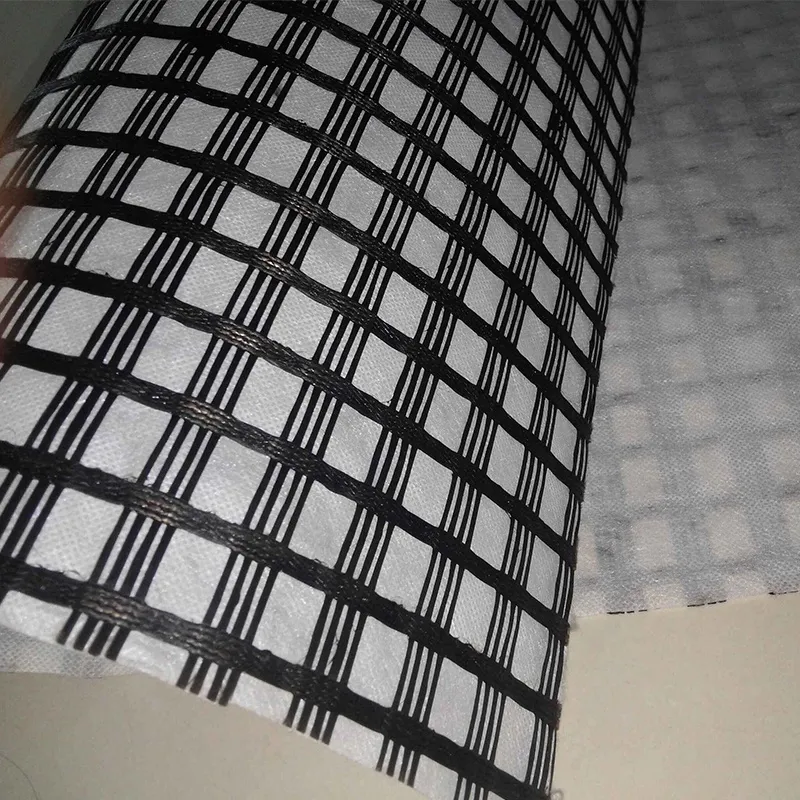

Glass Fiber Geogrid Composite Geotextile - 图片 3

Glass Fiber Geogrid Composite Geotextile

Glass fiber geogrid composite geotextile is a new type of composite geotechnical material made of glass fiber or high-strength polyester fiber and non-woven fabric through warp knitting or bonding.
Tensile Strength:25-25KN,30-30KN,50-50KN,80-80KN,100-100KN,120-120KN
Roll Size:3.95*100m,as request

CONTACT US

Product description

Glass fiber geogrid composite geotextile is a new type of composite geotechnical material made of glass fiber or high-strength polyester fiber and non-woven fabric through warp knitting or bonding. It organically combines the excellent properties of geogrid and geotextile.

Features

It has the characteristics of high tensile strength, small elongation, and uniform vertical and horizontal deformation.

At the same time, it has high water permeability, excellent filterability and wear resistance.

Application

1. It is used for the reinforcement of roads, railways, airports and other roads.

2. Used for maintenance and widening of old road surfaces (asphalt pavement, cement concrete pavement).

3. Used for roadbed reinforcement.

Technical standard

Geogrid Composite Geotextile Technical Parameters
Classification model Breaking strength (KN/m) Elongation at break (%) Grid size (mm×mm) Width(m)
vertical Latitude vertical Latitude
Fiberglass grid composite geotextile GGN30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGN50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGN80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
GGM30/150 ≥30 ≥30 ≤4 ≤4 12~50 2~6
GGM50/150 ≥50 ≥50 ≤4 ≤4 12~50 2~6
GGM80/150 ≥80 ≥80 ≤4 ≤4 12~50 2~6
High-strength polyester fiber composite geotextile GPN25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPN50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPN80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6
GPM25/150 ≥25 ≥25 ≤20 ≤20 12~50 2~6
GPM50/150 ≥50 ≥50 ≤20 ≤20 12~50 2~6
GPM80/150 ≥80 ≥80 ≤20 ≤20 12~50 2~6

1. GGN and GPN are composite materials directly woven with fibers and geotextiles, and GGM and GPM are composite materials bonded with geotextiles after coating.

2. The grid size is the grid size of fiber weaving or grid.

3. The strength, width and grid size of the geogrid can be customized according to the requirements of users.
